跨桥
产品名称:跨桥

产品编号:204452-147
产品规格:
库存数量:10000 套
适用机型:各种机台
  产品介绍:

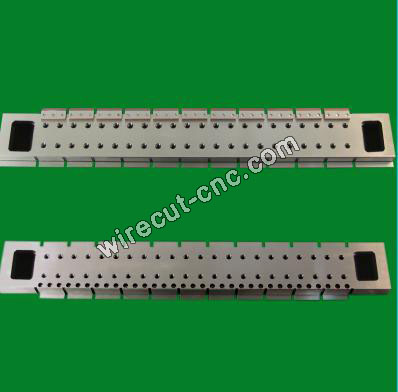

Double-sided Clamping Beam (Ruler)
Technical Data
Item No.
Dimensions/Description
(WxLxThickness+Height)
Max.
Load
Machine
GC-901-1
2.95"x15.4"x0.7"+0.2"
75x390x18+5mm
44.4Lbs.
20Kg
Any Machine
GC-901-2
3.3"x20"x0.7"+0.2"
85x510x18+5mm
48.9Lbs.
22Kg
Any Machine
GC-901-3
3.74"x25.98"x0.79"+0.2"
95x660x20+5mm
77.8Lbs.
35Kg
Any Machine
GC-901-4
3.74"x27.56"x0.79"+0.2"
95x700x20+5mm
93.3Lbs.
42Kg
Any Machine
GC-901-5
3.74"x29.13"x0.79"+0.2"
95x740x20+5mm
106.7Lbs.
48Kg
Any Machine
GC-901-6
3.74"x34.64"x0.94"+0.2"
95x880x24+5mm
120Lbs.
54Kg
Any Machine
GC-901-7
3.94"x37.8"x1.02"+0.2"
100x960x26+5mm
128.9Lbs.
58Kg
Any Machine
Application
Wire EDM

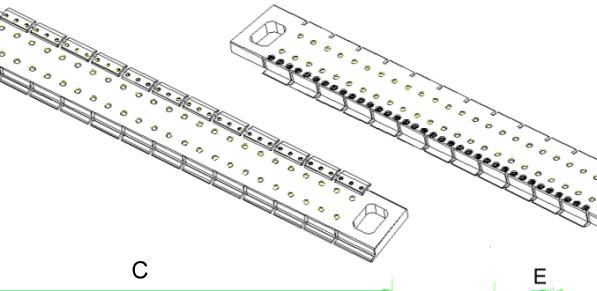

CAD-IMAGES

A
B
C
D
E
F
GC-901-1
390
75
18
5
9
GC-901-2
510
85
18
5
9
GC-901-2-A
530
85
18
5
9
GC-901-3
660
95
20
5
10
GC-901-3-A
600
95
20
5
10
GC-901-4
700
95
20
5
10
GC-901-5
740
95
20
5
10
GC-901-5-A
760
95
20
5
10
GC-901-6
880
95
24
5
10
GC-901-7
960
100
28
5
10
GC-901-7-A
1200
100
32
5
10
